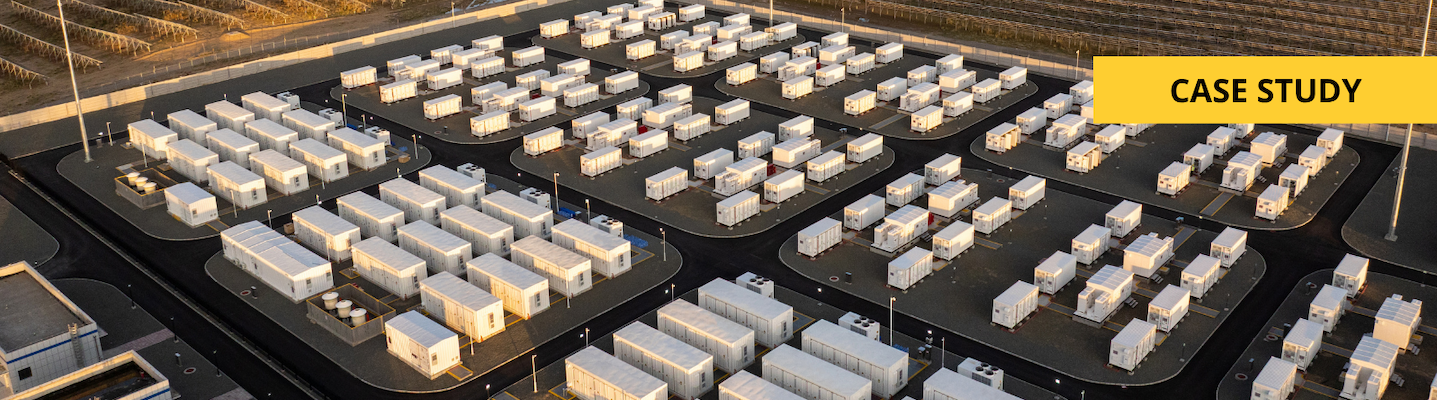

Project at a Glance
- Project Location: Texas
- Client: GridStor
- Size: 220 MW/440MWh (68 inverter skids, 204 battery units)
- Self-integrated Anza Service: Commissioning Management, Technical Integration, Owner’s Representative
The Challenge: Managing Integration Complexity at Speed
GridStor aimed to achieve a Commercial Operation Date (COD) within one year using a self-integrated approach, assuming direct responsibility for managing complex technical interfaces between major equipment vendors.
GridStor’s project team sought to address the following challenges:
- Evolving Team Structure: GridStor changed personnel mid-stream, requiring rapid knowledge transfer to maintain momentum on a massive utility-scale deployment.
- Vendor Complexity: Differing requirements and approaches of the battery, inverter, and EMS vendors needed to be harmonized to sustain progress.
- Technical Roadblocks: Critical network equipment failures and telemetry misconfigurations necessitated prompt resolution to maintain the project’s commissioning schedule.
GridStor required a partner who could seamlessly integrate with their team, serve as the technical glue between vendors, and drive the project to completion with rigor.
The Solution: Anza as the Technical Integration Lead
Anza moved beyond standard consulting to act as an extension of the client’s operations team. We took technical ownership of the site’s integration, identifying and resolving cross-vendor issues that otherwise would have caused significant delays.
- Forensic-Level QA: Catching Defects at the Source (FAT): Before equipment even reached the site, Anza identified significant gaps in the vendors’ Factory Acceptance Testing (FAT) documentation. Rather than rubber-stamping reports, Anza’s engineering team performed a comprehensive desktop review of the raw testing data.
- Identified Critical Flaws: Anza flagged specific units showing marginal insulation resistance and high continuity resistance on grounding cables.
- Targeted Monitoring: Anza directed the commissioning team to monitor these specific units during commissioning to proactively address potential impacts.
- First-Article Installation Validation: To prevent repetitive installation errors across 204 containers, Anza recommended a rigorous inspection of the initial installation. We paused to verify that the mechanical and electrical installation of the first unit met strict quality standards before allowing the EPC to proceed with the remaining 200+ units, thereby protecting the schedule from widespread rework.
- Regulatory Confidence: Anza’s engineering team led the creation of the ERCOT commissioning plans. The ERCOT representative explicitly noted that the initial submission was “one of the best I’ve seen” and “remarkably clean.” Throughout the commissioning process, Anza closely reviewed ERCOT telemetry and led the ERCOT Part 3 commissioning tests.
- Agile Commissioning Management: Anza established daily progress tracking and hot commissioning workarounds to overcome obstacles and maintain the schedule, even when vendor equipment failed.
- Leveraging a project-tracking tool developed over the commissioning of dozens of projects, Anza ensured the large site stayed organized during the commissioning phase
- Anza also served as the focal point for long- and short-term planning. In weekly calls, Anza coordinated priorities among all parties, and on a daily basis, Anza kept personnel focused on those priorities while triaging any issues that arose.
The Outcome: Success Earns Trust
Despite significant vendor challenges beyond GridStor’s control, its partnership with Anza enabled the project to regain critical time. By removing dependencies from the critical path, the project team initiated EMS development weeks ahead of schedule and completed hot commissioning and ERCOT testing for the 220 MW facility in just two months.
This persistence resulted in a major victory: the facility was successfully energized and commissioned, securing the critical approvals needed to begin commercial charging and discharging.
“In a self-integrated model, the technical risk falls entirely on the owner. Anza mitigated that risk by acting as the technical glue between our vendors. From catching specific defects during Factory Acceptance Testing to engineering workarounds for ERCOT compliance, they provided the rigor of a full-service integrator with the flexibility of a partner.”
– Tony Song, SVP of Engineering, Procurement, & Construction, GridStor
Key Takeaway
Because of the technical strength and trust established during the commissioning phase, GridStor has expanded Anza’s scope across its broader portfolio. This partnership has led to the award of a subsequent project in which Anza will provide full-scope commissioning and engineering support for GridStor’s next major deployment. Additionally, Anza was engaged to support technical operations for a facility in their portfolio, cementing the transition from a single-project engagement to a multi-asset partnership.
For owners pursuing a self-integrated model, the savings from avoiding an integrator may increase schedule risk. Anza bridges that gap, providing the technical rigor of an integrator with the flexibility of an owner’s representative.
